The HBVCAM Sony IMX317 8M Pixel 4k Usb Camera Module is a cutting-edge imaging solution designed to meet the demanding requirements of high-resolution video capture and image processing applications. This module offers unparalleled image quality, advanced features, and convenient connectivity options, making it an ideal choice for a wide range of industries.
Product Description

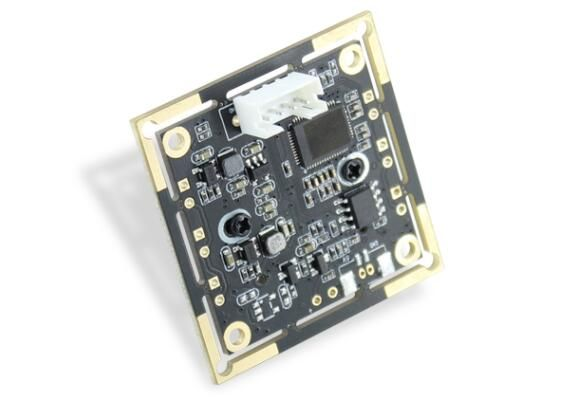

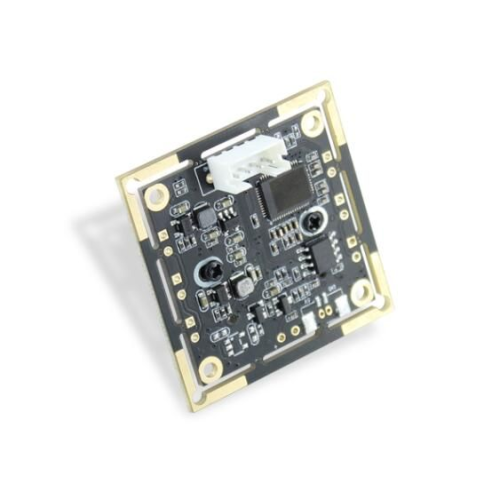

Sony IMX317 8M Pixle HD 4K CMOS Camera Module
The HBVCAM Sony IMX317 8M Pixel 4k Usb Camera Module is a cutting-edge imaging solution designed to meet the demanding requirements of high-resolution video capture and image processing applications. This module offers unparalleled image quality, advanced features, and convenient connectivity options, making it an ideal choice for a wide range of industries.
HBVCAM Sony IMX317 8M Pixel HD 4K CMOS Camera Module
*Full HD 4K USB Camera Module with Microphone
*High Speed 4K HD USB Camera *3.6mm lens
*1/2.5" SONY IMX317 sensor for a high-quality sharp image.
*High speed USB 2.0 interface for high-resolution PC camera interface.
*Super small outline and a thin profile for embedded applications
*High quality lens, true and undistorted color image.
*Low power consumption – ideal for portable equipment.
*UVC for use in Linux, Windows XP, WIN CE, MAC, SP2 or above.
*Camera with UVC
Module No. |
HBVCAM-4K1928 V55 |
Module Size |
38mm × 38mm × 24.5mm±0.5MM |
Temperature (Operation) |
-30°C to 70°C |
Temperature (Stable Image) |
0°C to 50°C |
Assembly technique |
SMT (ROSH) |
Focus |
Fixed |
Object distance |
30CM-infinity |
Resolution |
800LW/PH (Center) |
PCB printing ink |
black |
interface |
USB 2.0 |
Power suuply |
USB bus power |
supply voltage |
DC 5V±5% |
Maximum Power consumption |
940mW |
Operating system request |
Win XP/win 7、8 / vista /android 4.0/ mac /Linux with uvc |
Sensor |
IMX317 (1/2.5” ) |
Seneor Package |
CSP,Bare Die |
Maximum resolution |
3840*2160 |
Sensitivity |
760mv /(lux-sec) |
Pixel Size |
1.62µm x 1.62µm |
Maximum Image Transfer Rate |
MJPEG 1600x1200 30FPS / YUY2 1600x1200 5FPS MJPEG 1920x1080 30FPS / YUY2 1920x1080 5FPS MJPEG 2048x1536 30FPS / YUY2 2048x1536 3FPS MJPEG 2688x1512 30FPS / YUY2 2688x1512 2FPS MJPEG 2592x1944 30FPS / YUY2 2592x1944 2FPS MJPEG 3840x2160 30FPS / YUY2 3840x2160 1FPS
MJPEG 640x360 60FPS / YUY2 640x480 30FPS MJPEG 800x600 60FPS / YUY2 800x600 20FPS MJPEG 1280x720 60FPS / YUY2 1280x720 10FPS
|
S/N Ratio |
44 db |
Max Dynamic Range |
82 db |
Shutter type |
Electronic rolling shutter |
AGC/AEC/Whiter balance |
Auto |
Output Formats |
YUY2/MJPEG |
Microphone |
Support |
Lens Construction |
2G2P |
F/No |
2.4 |
EFL |
4.2mm |
FOV |
85° |
TV Distortion |
<5% |
Relative Illumination (Sensor) |
70% |
IR Filter |
650±10nm |
Module Package |
Anti-electrostatic tray |
Certifications |
FCC/CE/ROSH |
◆High-Resolution Imaging: The HBVCAM module features an impressive 8-megapixel Sony IMX317 CMOS sensor, ensuring stunning image clarity and detail. Capture every moment with exceptional resolution and vivid colors.
◆4K Ultra HD Video: With its ability to record in true 4K resolution (3840 x 2160 pixels) at 30 frames per second, this 4k USB Camera Module delivers crystal-clear video footage, allowing you to capture every detail with remarkable clarity and precision.
◆Advanced CMOS Technology: The Sony IMX317 CMOS sensor combines advanced pixel design and back-illuminated technology, enabling excellent low-light performance and reducing image noise, resulting in superior image quality even in challenging lighting conditions.
◆USB Connectivity: The HBVCAM camera module is equipped with a USB interface, providing seamless compatibility with various devices such as computers, laptops, and embedded systems. Enjoy easy plug-and-play functionality and fast data transfer for convenient integration into existing setups.
◆Versatile Applications: This 4K USB Camera Module finds applications in a wide range of fields, including video conferencing, industrial automation, robotics, medical imaging, security systems, and more. Its versatility and exceptional image quality make it suitable for both professional and consumer applications.
◆Compact and Flexible Design: The 4k Usb Camera Module boasts a compact form factor, making it easy to integrate into space-constrained environments. Its lightweight construction and flexible mounting options allow for seamless integration into various products and setups.
◆Software Development Kit (SDK): Accompanied by a comprehensive SDK, the HBVCAM module provides developers with the tools they need to maximize its capabilities. Take advantage of the SDK's features and APIs to customize and optimize the camera module for your specific requirements.
The HBVCAM Sony IMX317 8M Pixel HD 4K CMOS Camera Module offers exceptional image quality, advanced features, and versatile connectivity options. With its 4K Ultra HD video capability, USB connectivity, and compact design, it is the perfect choice for demanding applications in various industries. Explore the possibilities and unlock the power of high-resolution imaging with the HBVCAM camera module. Upgrade your visual experiences today with the 4K USB Camera Module that sets new standards in image quality and versatility.
