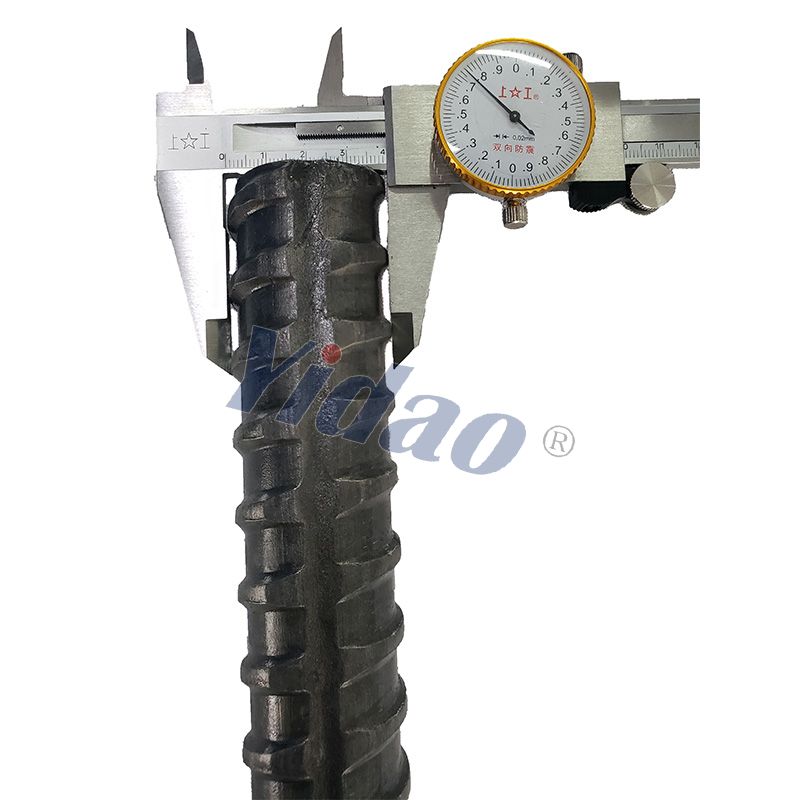

Dia 25mm-500 Thread Bar

The PSB500 thread bar is made of black steel with a continuous right-handed along the entire length of the bar. The continuous threading allows the cut of the bar with different length according to the design requirements and it also improves the adhesion between the bar and grouting.

Product Description

The PSB500 thread bar is made of black steel with a continuous right-handed along the entire length of the bar. The continuous threading allows the cut of the bar with different length according to the design requirements and it also improves the adhesion between the bar and grouting.

Thread Bar / Post-Tensioning Bar

φ25mm- PSB500

Brand Yidao Standard GB/T20065-2016
Weight 4.1 kg/meter Yield/Tensile 246/309 KN
Type Hot Rolled Meterial Carbon Steel;  Alloy  Steel
Thread  Left Hand; Right Hand Quality Control 100%  quality  inspected
Surface Self Color; Zinc Plated ; HDG ;Epoxy Coating
Application Post-Tensioning; Formworks; Geotechnical; Ground Anchors Soil Nailing; Tunneling



Length: 9m, 12m or as per customers' requirements

Technology: Hot rolled, right hand

Accessories: full hex nut, spherical hex nut, bearing plate, domed nut, anchor bolt, foundation bolt, couplers, spring bar

Packing: in bundles

Delivery: 15-30 days



COMPOSITION:

The PSB500 thread bar is made of black steel with a continuous right-handed along the entire length of the bar. The continuous threading allows the cut of the bar with different length according to the design requirements and it also improves the adhesion between the bar and grouting.



Typical Applications:

1. Rock bolts

2. Marine tie rod

3. Concrete anchoring system

4. Formwork tie bar

5.Post-tensioning systems

6. Geotechnical systems

7.Mining & Tunneling
