Products description

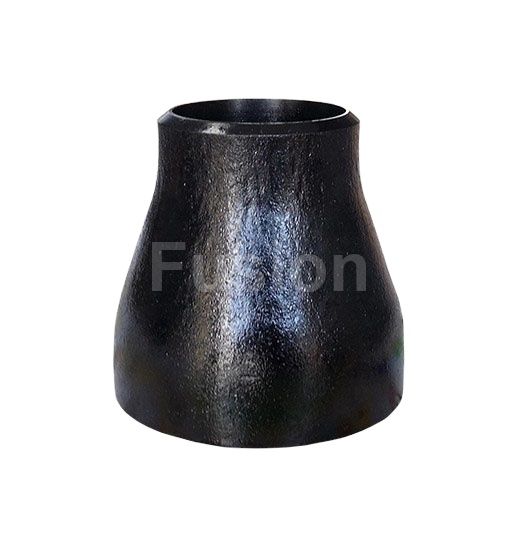

A Concentric Reducer is a type of pipe fitting used to reduce the size of pipe from one end to the other end. These pipe fittings are commonly used to join two pipes of different sizes together, such as in plumbing systems and industrial piping systems, transferring liquid, gas, or another substance from one pipe to the other.

Concentric reducers are named for the fact that their ends are in the same, central direction. As opposed to an eccentric, or non-concentric, reducer, a concentric reducer is often used when the size of the pipe needs to be increased at one end, making them an important tool in plumbing and pipe-fitting.

One advantage of using concentric reducers over other types of pipe fittings is that they provide enhanced structural integrity because the centre of the fitting is kept the same throughout its design. This keeps the joints secure and allows the pipe to take high levels of pressure without leakage or collapse. Concentric reducers also ensure clean fluid flow with minimal turbulence, reducing clogs and spillage.

Concentric reducers are made from a variety of materials, including stainless steel and carbon steel. Each material has its own benefits and drawbacks, but all are capable of handling high operating temperatures and pressures depending on their thickness and lack of presence of any bends in the reducer. The wall thickness of the material typically determines the strength of the fitting, allowing it to withstand more heat and pressure over time.

When selecting the concentric reducer best suited for a particular application, one must consider the wall thickness, maximum working pressure, and the type of material selected. Additionally, it’s important to select a reducer with the correct end connections, such as a butt welded, press-fit, or threaded connection. All of these design features combined can ensure that the joint is properly sealed, preventing leaks or corrosion.

Concentric reducers are an extremely versatile and important pipe fitting used in a variety of industrial and plumbing applications. Available in a range of different materials, these fittings come in both concentric and eccentric versions, meaning they can be used to reduce or increase the size of the pipe on either end. They provide the necessary structural integrity and clean fluid flow needed to keep the pipes secure and running smoothly. Ultimately, they are an efficient and effective tool for connecting different size pipes and transferring liquid, gas, or other substances from one location to another.
