11.6 Inch Plug-and-Play Capacitive Touch Screen Overlay

Capacitive Touch Screen

Product Description

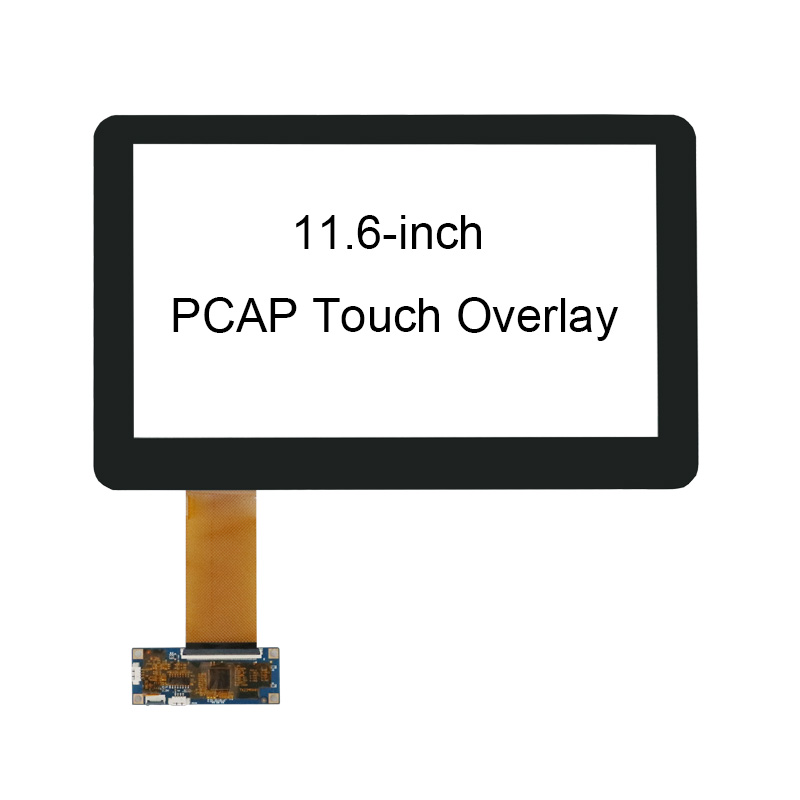

11.6 Inch Plug-and-Play Capacitive Touch Screen Overlay

11.6 inch projected capactive touch screen overlays of ours are all glass-on-glass structure,  6H surface hardness strengthened cover glass optically bonded on multi-touch ITO sensor glass. They are widescreen with aspect ratio 16:9. We provide COB type and COF type for option. The COF type supports USB inerface and IIC interface. The COB type supports USB, IIC and RS232. For USB interface projected capacitive touch screen, it is plug-and-play on Windows, Android and Linux. Which one are you interested in? Just contact us to discuss further.

Model No. Viewing Area Outline Dimension Type Interface Touch Points
YS1168846V1 257.32x145.18mm 289.4x178.9mm COB USB/IIC 10
YS1169025V1 257.31x145.4mm 279.5x177.09mm COF USB/IIC 10
YS1168332V1 257x145mm 296x184.9mm COB USB/IIC/RS232 10
YS1168591V1 256.82x144.68mm 268.5x158.7mm COB USB/IIC 10



Learn more about our PCAP Touch Screen
