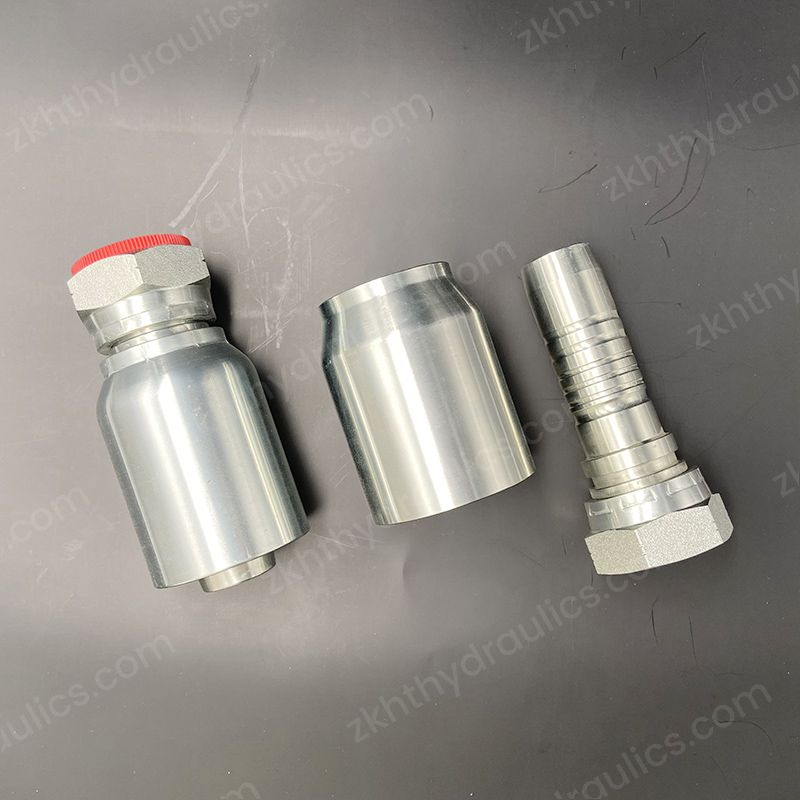

26713RW Interlock One Piece Hose Fittings
Product Description
HT Hydraulics Since 1987 Hydraulic Hose Fitting -Interlock One Piece Fittings
JIC FEMALE 74° CONE SEAL ISO 8434-2-- SAE J514
H26713-RW |
HT Hydraulics Since 1987 Hydraulic Hose Fitting -Interlock One Piece Fittings |
|||||||
JIC FEMALE 74° CONE SEAL ISO 8434-2-- SAE J514 |
||||||||
Part No. |
Thread |
HOSE BORE |
DIMENSIONS |
|||||
内径DN |
DASH |
A |
B |
H |
W |
|||
H26713-12-12RW |
1.1/16*12 |
20 |
12 |
93 |
45 |
30 |
32 |
|
H26713-16-16RW |
1.5/16*12 |
25 |
16 |
103 |
52 |
36 |
38 |
|
H26713-16-20RW |
1.5/16*12 |
32 |
20 |
116 |
52 |
46 |
38 |
|
H26713-20-20RW |
1.5/8*12 |
32 |
20 |
125 |
61 |
46 |
50 |
|
H26713-24-24RW |
1.7/8*12 |
40 |
24 |
128 |
66 |
50 |
60 |
|
H26713-32-32RW |
2.1/2*12 |
50 |
32 |
166 |
78 |
2-1/2 |
2-7/8 |
As A Trusted Interlock Hose Fittings Manufacturer, We Prioritize Quality, Reliability, And Performance In Every Product We Deliver. Our Interlock Integrated Hose Fittings Are Engineered To Seamlessly Integrate Into Hydraulic Systems, Providing Maximum Efficiency And Durability. With Our Extensive Experience And Expertise, We Ensure That Our Integrated Hose Fittings Meet The Highest Industry Standards, Offering Superior Strength And Precision.
